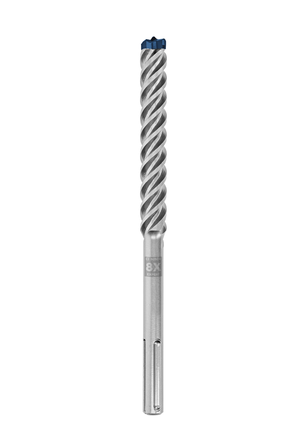

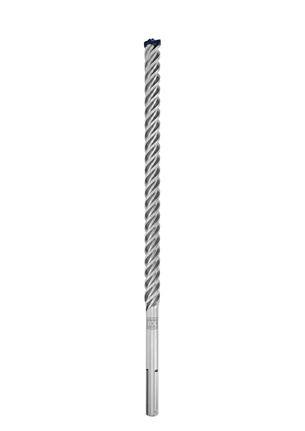

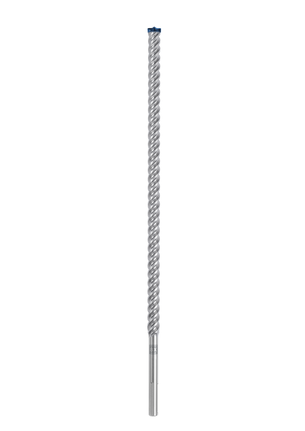

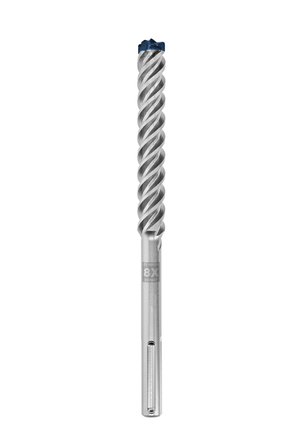

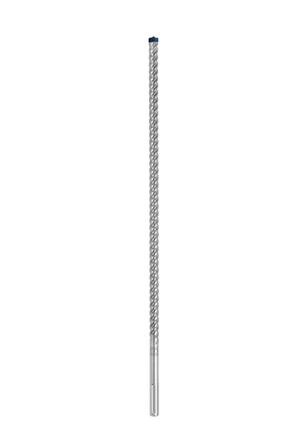

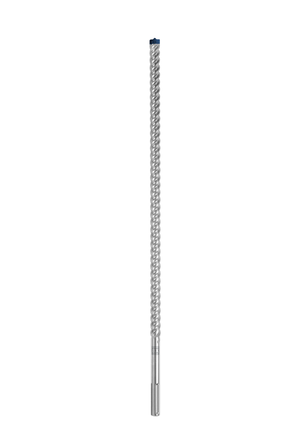

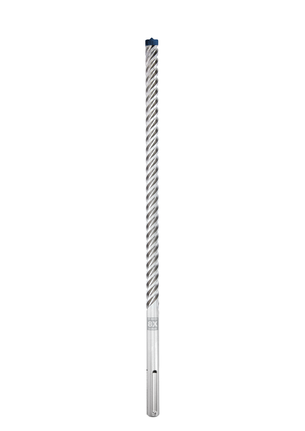

EXPERT SDS max-8X Hammer Drill Bit

For rotary hammer drills

EXPERT SDS max-8X

Lasts up to 3x longer than Bosch SDS max-4 Drill Bit

Test results
  • Long Life drilling reinforced concrete
  • Exceptionally durable drill bit tip with Bosch Carbide Technology
  • Punch through reinforced concrete with a 4-cutter full carbide head
  • Fits all SDS max rotary hammer drills

Materials

Soft stone
Hard stone
Concrete
Reinforced concrete
Concrete building block

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 12.00

Working length mm 400

Total length mm 540

Choose a pack size 1 Pcs

Available product options (42)
260.50 MYR
Recommended retail price excluding VAT
Check availability on location Find a local dealer Check availability on location

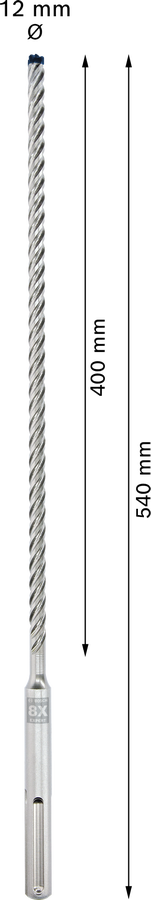

EXPERT SDS max-8X Hammer Drill Bit 12 x 400 x 540 mm 2 608 900 202
260.50 MYR
Recommended retail price excluding VAT
Find a local dealer

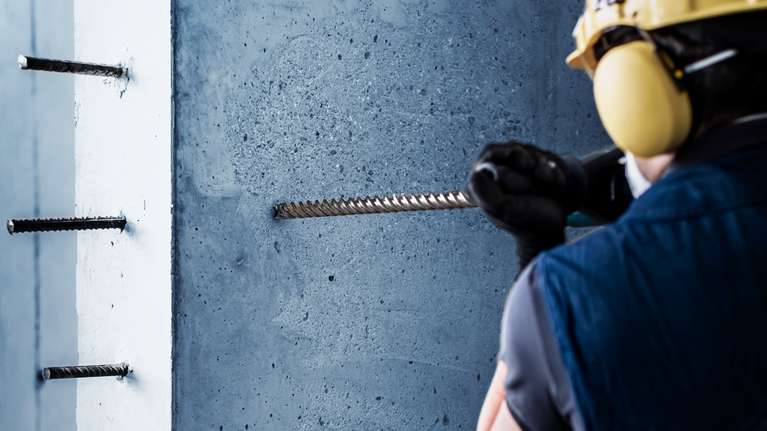

Long Life drilling reinforced concrete

Long Life drilling reinforced concrete
  • 1

    Exceptionally durable drill bit tip with Bosch Carbide Technology

  • 2

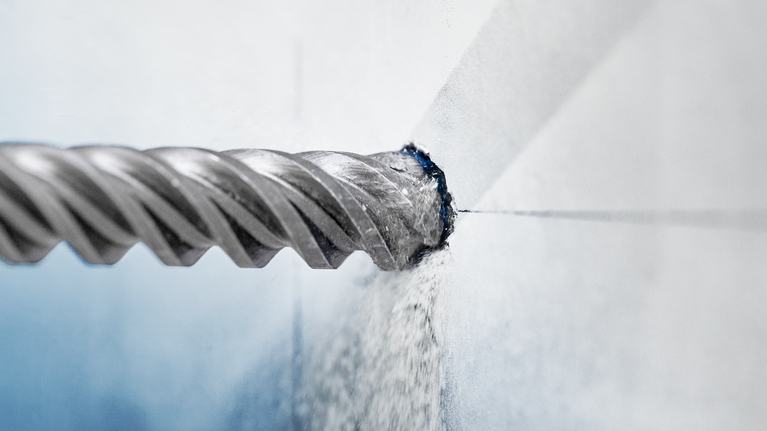

    Punch through reinforced concrete with a 4-cutter full carbide head

  • 3

    Highly resistant drill tip connection thanks to Bosch’s special welding process

Carbide Technology
EXPERT
Advantage

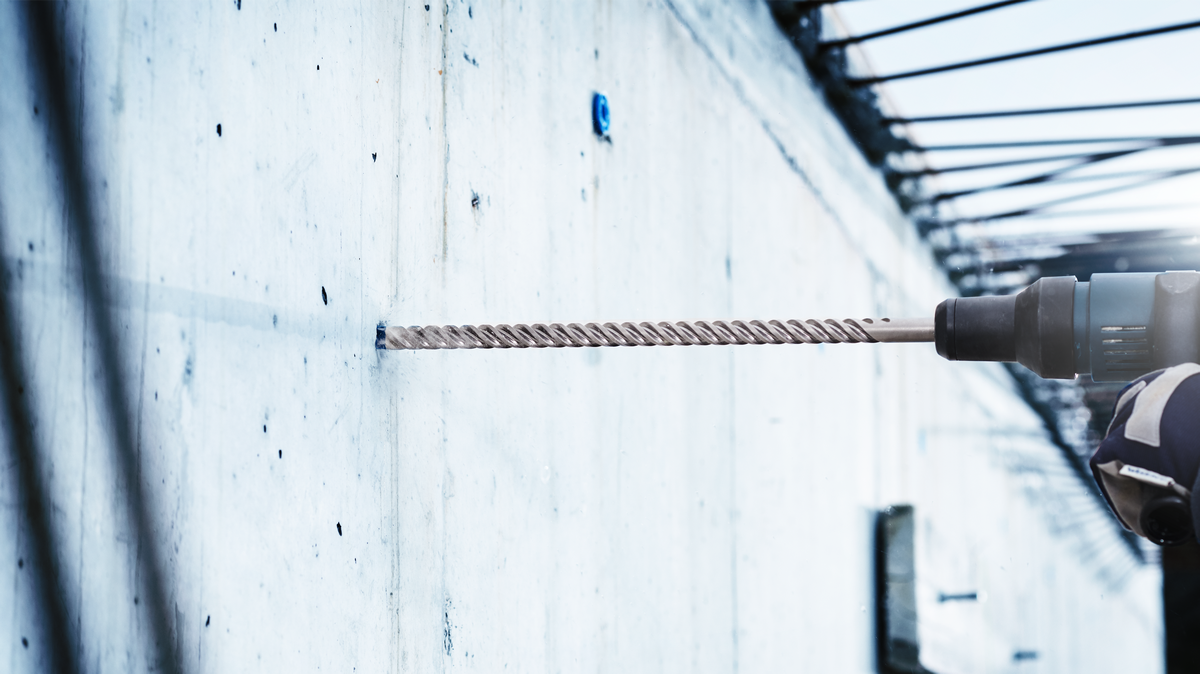

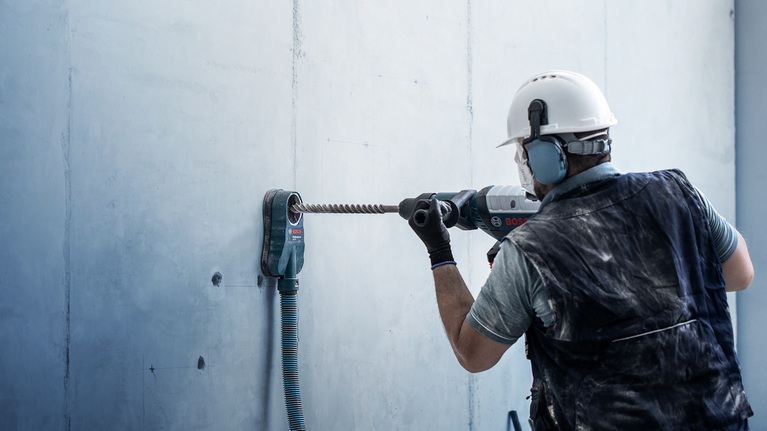

Drill Concrete Like an Expert

EXPERT SDS max-8X for Long Life Drilling Reinforced Concrete

Drilling through reinforced concrete is a tough job and it has traditionally taken its toll on hammer drill bits. Even 4-cutters wear out fast, resulting in downtime changing accessories and fetching supplies. The Full Carbide Head on the EXPERT SDS max-8X is an advanced 4-cutter design made from a single piece of the toughest metal: It doesn’t jam and presents no weakness on impact.

View more
imageAlt

Product Options

Available product options: 42

Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price
2 608 900 201 12.00 200 340 1 Pcs 219.50 MYR Find a local dealer
2 608 900 202 12.00 400 540 1 Pcs 260.50 MYR Find a local dealer
2 608 900 203 12.00 600 740 1 Pcs 400.50 MYR Find a local dealer
2 608 900 204 12.00 800 940 1 Pcs 536.50 MYR Find a local dealer
2 608 900 207 14.00 200 340 1 Pcs 266.00 MYR Find a local dealer
2 608 900 208 14.00 400 540 1 Pcs 304.00 MYR Find a local dealer
2 608 900 209 14.00 600 740 1 Pcs 425.00 MYR Find a local dealer
2 608 900 210 14.00 800 940 1 Pcs 423.00 MYR Find a local dealer
2 608 900 214 16.00 200 340 1 Pcs 318.50 MYR Find a local dealer
2 608 900 215 16.00 400 540 1 Pcs 366.50 MYR Find a local dealer
2 608 900 216 16.00 600 740 1 Pcs 487.50 MYR Find a local dealer
2 608 900 217 16.00 800 940 1 Pcs 612.00 MYR Find a local dealer
2 608 900 221 18.00 200 340 1 Pcs 329.50 MYR Find a local dealer
2 608 900 222 18.00 400 540 1 Pcs 393.00 MYR Find a local dealer
2 608 900 223 18.00 600 740 1 Pcs 504.00 MYR Find a local dealer
2 608 900 224 18.00 800 940 1 Pcs 616.50 MYR Find a local dealer
2 608 900 228 20.00 200 320 1 Pcs 343.00 MYR Find a local dealer
2 608 900 229 20.00 400 520 1 Pcs 373.00 MYR Find a local dealer
2 608 900 230 20.00 600 720 1 Pcs 512.00 MYR Find a local dealer
2 608 900 231 20.00 800 920 1 Pcs 623.00 MYR Find a local dealer
2 608 900 233 22.00 200 320 1 Pcs 369.50 MYR Find a local dealer
2 608 900 234 22.00 400 520 1 Pcs 395.00 MYR Find a local dealer
2 608 900 235 22.00 600 720 1 Pcs 532.00 MYR Find a local dealer
2 608 900 236 22.00 800 920 1 Pcs 634.50 MYR Find a local dealer
2 608 900 238 24.00 200 320 1 Pcs 404.00 MYR Find a local dealer
2 608 900 239 24.00 400 520 1 Pcs 445.00 MYR Find a local dealer
2 608 900 240 25.00 200 320 1 Pcs 402.00 MYR Find a local dealer
2 608 900 241 25.00 400 520 1 Pcs 467.50 MYR Find a local dealer
2 608 900 242 25.00 600 720 1 Pcs 612.00 MYR Find a local dealer
2 608 900 243 25.00 800 920 1 Pcs 754.50 MYR Find a local dealer
2 608 900 245 26.00 200 320 1 Pcs 463.00 MYR Find a local dealer
2 608 900 246 26.00 400 520 1 Pcs 528.50 MYR Find a local dealer
2 608 900 247 28.00 200 320 1 Pcs 459.50 MYR Find a local dealer
2 608 900 248 28.00 400 520 1 Pcs 498.50 MYR Find a local dealer
2 608 900 249 28.00 600 720 1 Pcs 688.00 MYR Find a local dealer
2 608 900 250 28.00 800 920 1 Pcs 839.00 MYR Find a local dealer
2 608 900 252 30.00 200 320 1 Pcs 476.50 MYR Find a local dealer
2 608 900 253 30.00 400 520 1 Pcs 570.00 MYR Find a local dealer
2 608 900 254 32.00 200 320 1 Pcs 520.00 MYR Find a local dealer
2 608 900 255 32.00 400 520 1 Pcs 590.00 MYR Find a local dealer
2 608 900 256 32.00 600 720 1 Pcs 779.00 MYR Find a local dealer
2 608 900 257 32.00 800 920 1 Pcs 930.00 MYR Find a local dealer
