Masonry & Concrete Drill Bits
PRO
Object #200409004: 2608833808N_bo_pro_u_f_1
Object #200409003: 2608833808N_bo_pro_p_f_1
Object #200456495: 3077726_app_web_1
Object #200456496: 3077726_app_web_2
Object #200456497: 3077726_app_web_3
Object #200456498: 3077726_app_web_4
Object #200456499: 3077726_app_web_5
Object #200409004: 2608833808N_bo_pro_u_f_1
Object #200409003: 2608833808N_bo_pro_p_f_1
Object #200456495: 3077726_app_web_1
Object #200456496: 3077726_app_web_2
Object #200456497: 3077726_app_web_3
Object #200456498: 3077726_app_web_4
Object #200456499: 3077726_app_web_5
PRO SDS plus-5X

PRO SDS plus-5X Hammer Drill Bit

For rotary hammer drills

PRO SDS plus-5X

Lasts up to 1.5x longer than a Bosch SDS plus-1 Drill Bit

Test results
  • Long Life drilling in reinforced concrete
  • High-quality, tough tungsten carbide ensures strength and durability

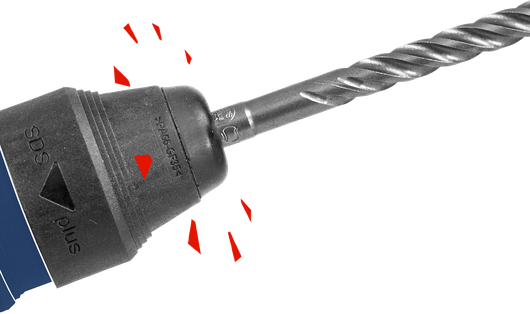

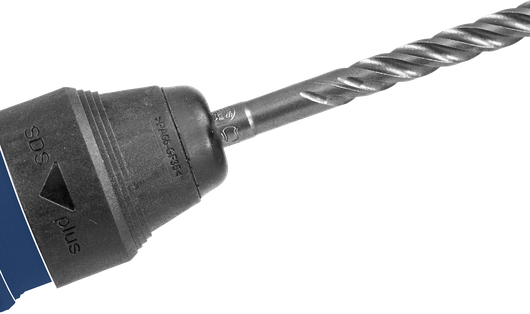

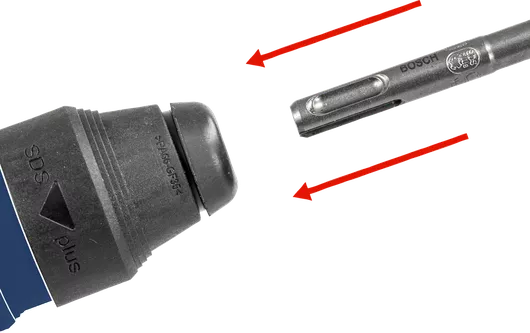

  • Fits all SDS plus rotary hammer drills

Materials

Reinforced concrete
Concrete
Lime and sand bricks
Solid brick
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 27 options

Working length mm 8 options

Total length mm 13 options

Choose a pack size 1 Pcs

Available product options (102)
from
15.60 MYR
Recommended retail price excluding VAT
PRO SDS plus-5X Hammer Drill Bit
from
15.60 MYR
Recommended retail price excluding VAT

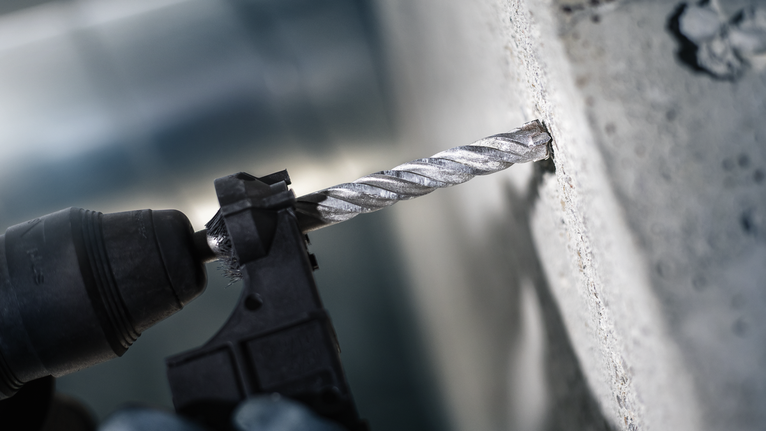

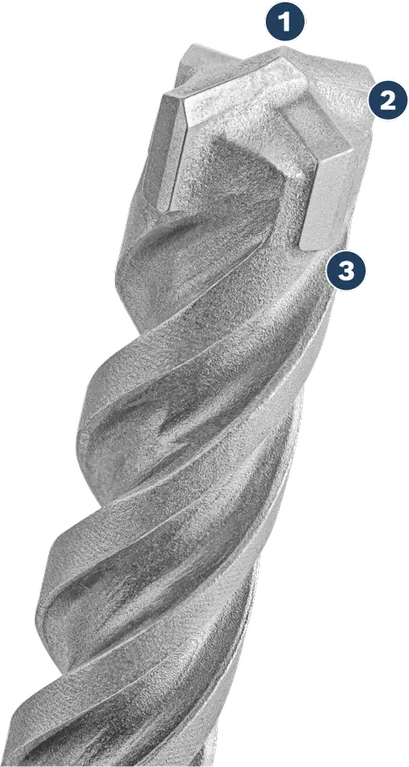

Long Life drilling in reinforced concrete

Long Life drilling in reinforced concrete

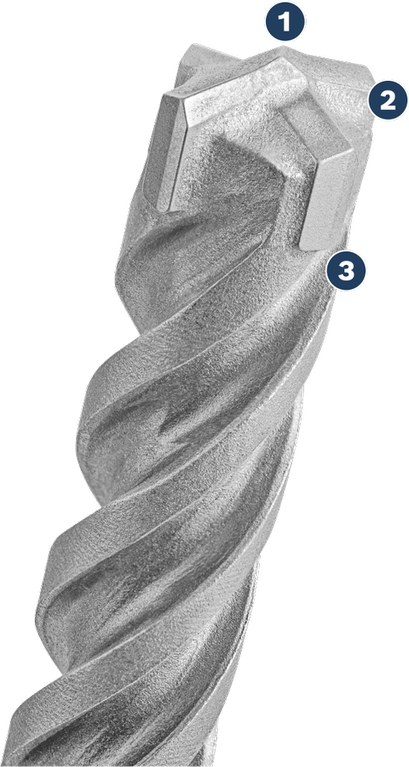

  • 1

    High-quality, tough tungsten carbide ensures strength and durability

  • 2

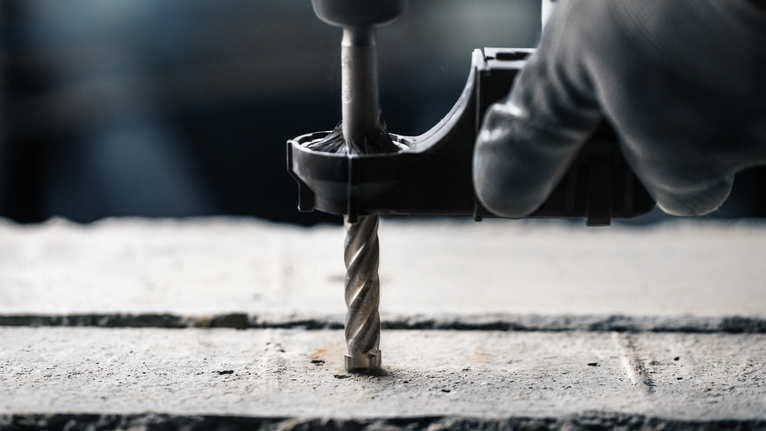

    4-cutter head doesn't jam or break when you hit rebar

  • 3

    4-flute design for efficient dust reduction

PRO
Advantage

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

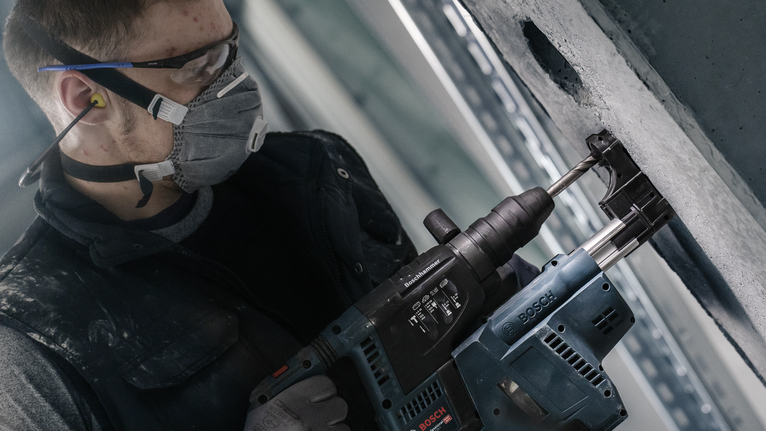

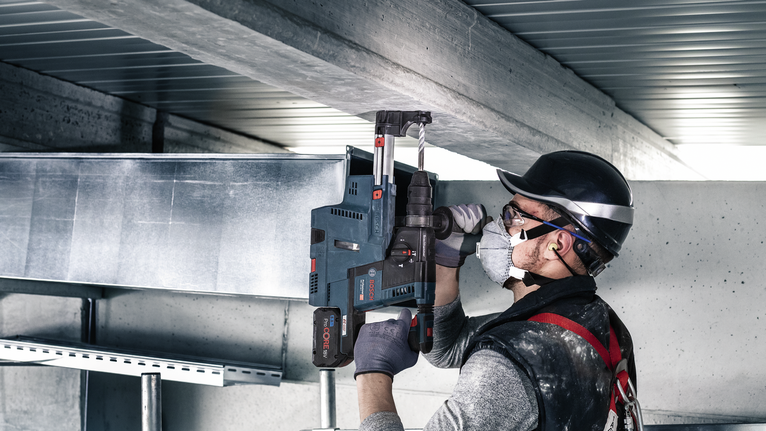

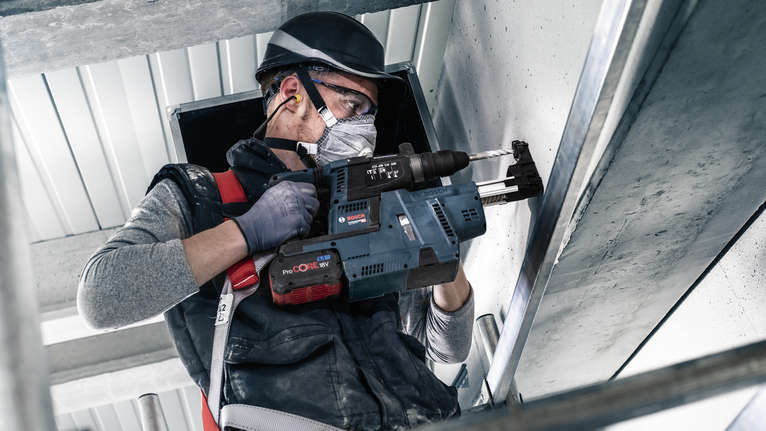

Reinforced concrete is a common material in infrastructure, commercial and domestic construction, and workers such as electricians, plumbers or HVAC installers often need to drill into it. PRO SDS plus-5X Hammer Drill Bits are designed for this tough task, with a hardy 4-cutter design that doesn't jam or break when you hit rebar.

View more

Product Options

Available product options: 102

Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price
2 608 706 861 4.00 50 110 1 Pcs 23.00 MYR Find a local dealer
2 608 706 862 4.00 100 160 1 Pcs Find a local dealer
2 608 706 863 5.00 50 110 1 Pcs 16.60 MYR Find a local dealer
2 608 706 864 5.00 100 160 1 Pcs 24.10 MYR Find a local dealer
2 608 706 865 5.00 150 210 1 Pcs Find a local dealer
2 608 706 866 5.00 200 260 1 Pcs Find a local dealer
2 608 706 867 5.00 250 310 1 Pcs Find a local dealer
2 608 706 868 5.00 400 460 1 Pcs Find a local dealer
2 608 706 869 5.50 50 110 1 Pcs 15.60 MYR Find a local dealer
2 608 706 870 5.50 100 160 1 Pcs 21.40 MYR Find a local dealer
2 608 706 871 5.50 150 210 1 Pcs Find a local dealer
2 608 706 872 5.50 200 260 1 Pcs Find a local dealer
2 608 706 873 5.50 250 310 1 Pcs Find a local dealer
2 608 706 874 5.50 400 460 1 Pcs Find a local dealer
2 608 706 875 6.00 50 110 1 Pcs 16.60 MYR Find a local dealer
2 608 706 876 6.00 100 160 1 Pcs 19.00 MYR Find a local dealer
2 608 706 877 6.00 150 210 1 Pcs Find a local dealer
2 608 706 878 6.00 200 260 1 Pcs Find a local dealer
2 608 706 879 6.00 250 310 1 Pcs Find a local dealer
2 608 706 880 6.00 400 460 1 Pcs Find a local dealer
2 608 706 881 6.50 50 110 1 Pcs 18.50 MYR Find a local dealer
2 608 706 882 6.50 100 160 1 Pcs 22.50 MYR Find a local dealer
2 608 706 883 6.50 150 210 1 Pcs Find a local dealer
2 608 706 884 6.50 200 260 1 Pcs Find a local dealer
2 608 706 885 6.50 250 310 1 Pcs Find a local dealer
2 608 706 886 7.00 50 110 1 Pcs 19.00 MYR Find a local dealer
2 608 706 887 7.00 100 160 1 Pcs 20.10 MYR Find a local dealer
2 608 706 888 7.00 150 210 1 Pcs Find a local dealer
2 608 706 889 7.00 200 260 1 Pcs Find a local dealer
2 608 706 890 8.00 50 110 1 Pcs 19.50 MYR Find a local dealer
2 608 706 891 8.00 100 160 1 Pcs 22.50 MYR Find a local dealer
2 608 706 892 8.00 150 210 1 Pcs 35.10 MYR Find a local dealer
2 608 706 893 8.00 200 260 1 Pcs Find a local dealer
2 608 706 894 8.00 250 310 1 Pcs Find a local dealer
2 608 706 895 8.00 300 360 1 Pcs Find a local dealer
2 608 706 896 8.00 400 460 1 Pcs Find a local dealer
2 608 706 897 8.00 550 610 1 Pcs Find a local dealer
2 608 706 898 9.00 100 160 1 Pcs 30.40 MYR Find a local dealer
2 608 706 899 9.00 150 210 1 Pcs 43.00 MYR Find a local dealer
2 608 706 900 9.50 100 160 1 Pcs Find a local dealer
2 608 706 901 10.00 50 110 1 Pcs 21.40 MYR Find a local dealer
2 608 706 902 10.00 100 160 1 Pcs 23.60 MYR Find a local dealer
2 608 706 903 10.00 150 210 1 Pcs Find a local dealer
2 608 706 904 10.00 200 260 1 Pcs 32.80 MYR Find a local dealer
2 608 706 905 10.00 250 310 1 Pcs 42.00 MYR Find a local dealer
2 608 706 906 10.00 300 360 1 Pcs Find a local dealer
2 608 706 907 10.00 400 460 1 Pcs 64.50 MYR Find a local dealer
2 608 706 908 10.00 550 610 1 Pcs Find a local dealer
2 608 706 909 11.00 100 160 1 Pcs 28.80 MYR Find a local dealer
2 608 706 910 11.00 150 210 1 Pcs 51.80 MYR Find a local dealer
2 608 706 911 11.00 200 260 1 Pcs 37.30 MYR Find a local dealer
2 608 706 912 12.00 100 160 1 Pcs 30.00 MYR Find a local dealer
2 608 706 913 12.00 150 210 1 Pcs Find a local dealer
2 608 706 914 12.00 200 260 1 Pcs 41.30 MYR Find a local dealer
2 608 706 915 12.00 250 310 1 Pcs Find a local dealer
2 608 706 916 12.00 300 360 1 Pcs Find a local dealer
2 608 706 917 12.00 400 460 1 Pcs 79.10 MYR Find a local dealer
2 608 706 918 12.00 550 610 1 Pcs Find a local dealer
2 608 706 919 12.70 100 160 1 Pcs Find a local dealer
2 608 706 920 13.00 100 160 1 Pcs 33.30 MYR Find a local dealer
2 608 706 921 13.00 150 210 1 Pcs Find a local dealer
2 608 706 922 13.00 200 260 1 Pcs 57.40 MYR Find a local dealer
2 608 706 923 14.00 100 160 1 Pcs 36.80 MYR Find a local dealer
2 608 706 924 14.00 150 210 1 Pcs 60.80 MYR Find a local dealer
2 608 706 925 14.00 200 260 1 Pcs Find a local dealer
2 608 706 926 14.00 250 310 1 Pcs 89.00 MYR Find a local dealer
2 608 706 927 14.00 300 360 1 Pcs Find a local dealer
2 608 706 928 14.00 400 460 1 Pcs Find a local dealer
2 608 706 929 14.00 550 610 1 Pcs Find a local dealer
2 608 706 930 14.30 100 160 1 Pcs Find a local dealer
2 608 706 931 15.00 100 160 1 Pcs 40.20 MYR Find a local dealer
2 608 706 932 15.00 200 260 1 Pcs 62.00 MYR Find a local dealer
2 608 706 933 15.00 400 460 1 Pcs Find a local dealer
2 608 706 934 16.00 150 210 1 Pcs 69.50 MYR Find a local dealer
2 608 706 935 16.00 200 260 1 Pcs Find a local dealer
2 608 706 936 16.00 250 310 1 Pcs 99.00 MYR Find a local dealer
2 608 706 937 16.00 300 360 1 Pcs Find a local dealer
2 608 706 938 16.00 400 460 1 Pcs 120.50 MYR Find a local dealer
2 608 706 939 16.00 550 610 1 Pcs 144.50 MYR Find a local dealer
2 608 706 940 17.00 150 210 1 Pcs Find a local dealer
2 608 706 941 17.00 250 310 1 Pcs Find a local dealer
2 608 706 942 17.50 100 160 1 Pcs Find a local dealer
2 608 706 943 18.00 150 200 1 Pcs 89.50 MYR Find a local dealer
2 608 706 944 18.00 250 300 1 Pcs Find a local dealer
2 608 706 945 18.00 400 450 1 Pcs 156.00 MYR Find a local dealer
2 608 706 946 18.00 550 600 1 Pcs Find a local dealer
2 608 706 947 19.00 150 200 1 Pcs 109.00 MYR Find a local dealer
2 608 706 948 19.00 250 300 1 Pcs 108.50 MYR Find a local dealer
2 608 706 949 19.00 400 450 1 Pcs 194.00 MYR Find a local dealer
2 608 706 950 20.00 150 200 1 Pcs 100.00 MYR Find a local dealer
2 608 706 951 20.00 250 300 1 Pcs 109.50 MYR Find a local dealer
2 608 706 952 20.00 400 450 1 Pcs 169.00 MYR Find a local dealer
2 608 706 953 20.00 550 600 1 Pcs Find a local dealer
2 608 706 954 22.00 200 250 1 Pcs 138.00 MYR Find a local dealer
2 608 706 955 22.00 400 450 1 Pcs 211.00 MYR Find a local dealer
2 608 706 956 22.00 550 600 1 Pcs Find a local dealer
2 608 706 957 24.00 200 250 1 Pcs 164.00 MYR Find a local dealer
2 608 706 958 24.00 400 450 1 Pcs 206.50 MYR Find a local dealer
2 608 706 959 25.00 200 250 1 Pcs 154.00 MYR Find a local dealer
2 608 706 960 25.00 400 450 1 Pcs 218.00 MYR Find a local dealer
2 608 706 961 26.00 200 250 1 Pcs 183.50 MYR Find a local dealer
2 608 706 962 26.00 400 450 1 Pcs Find a local dealer

out of products
