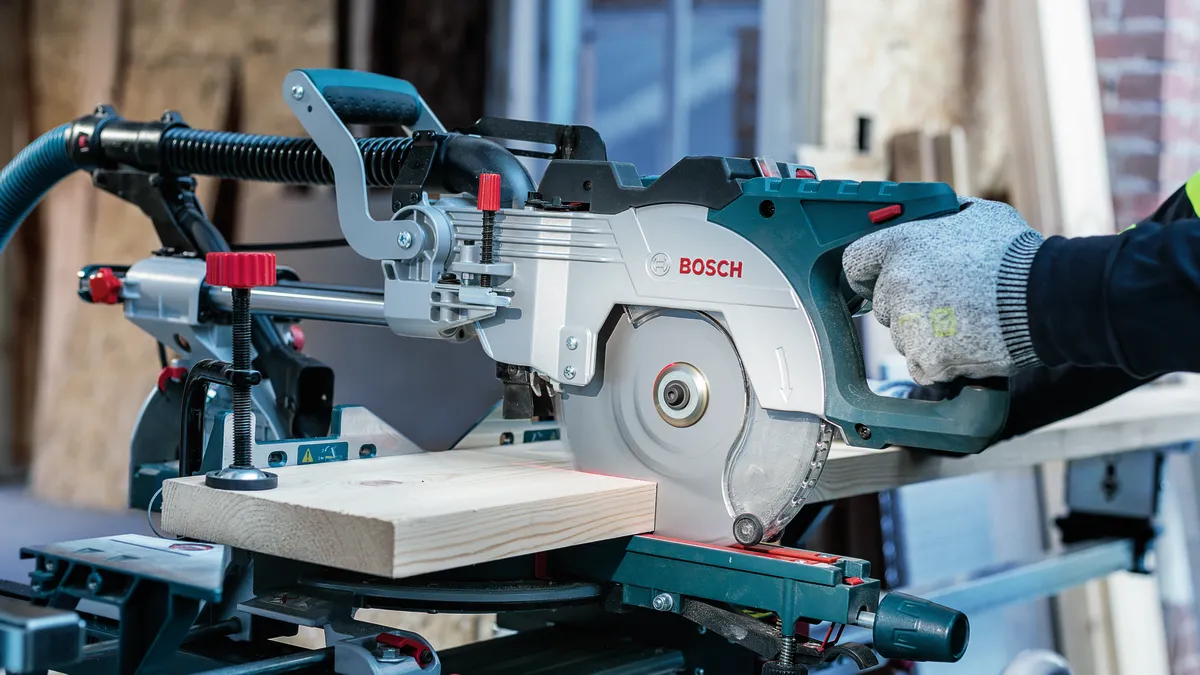

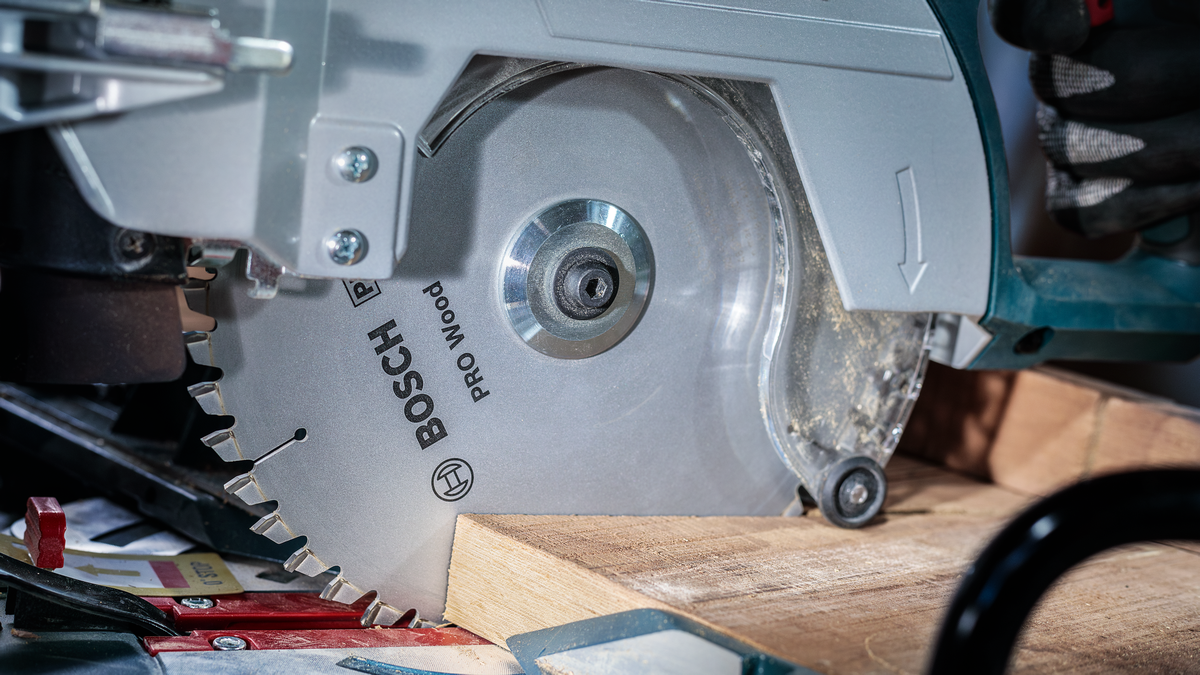

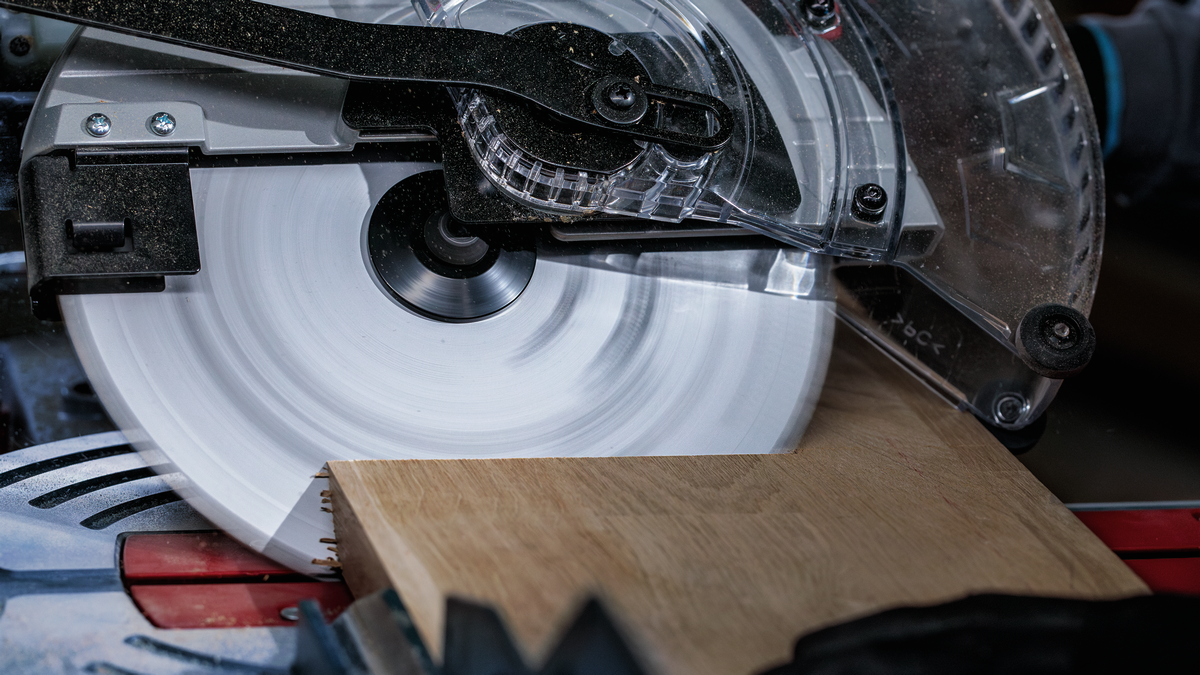

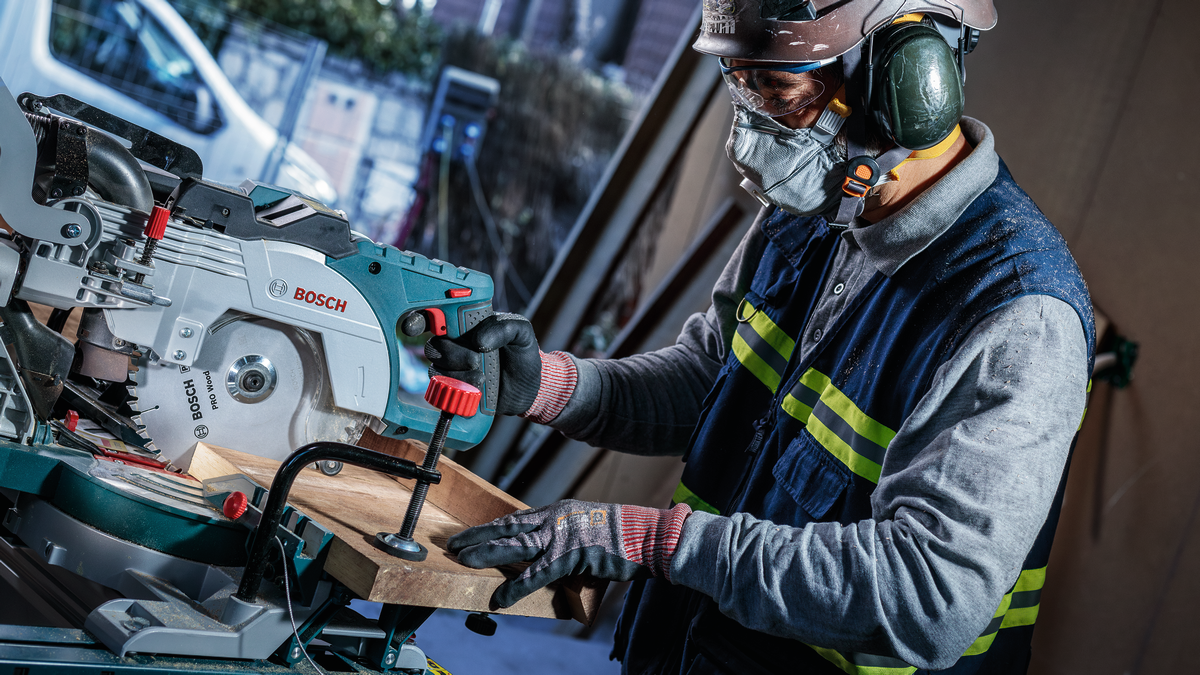

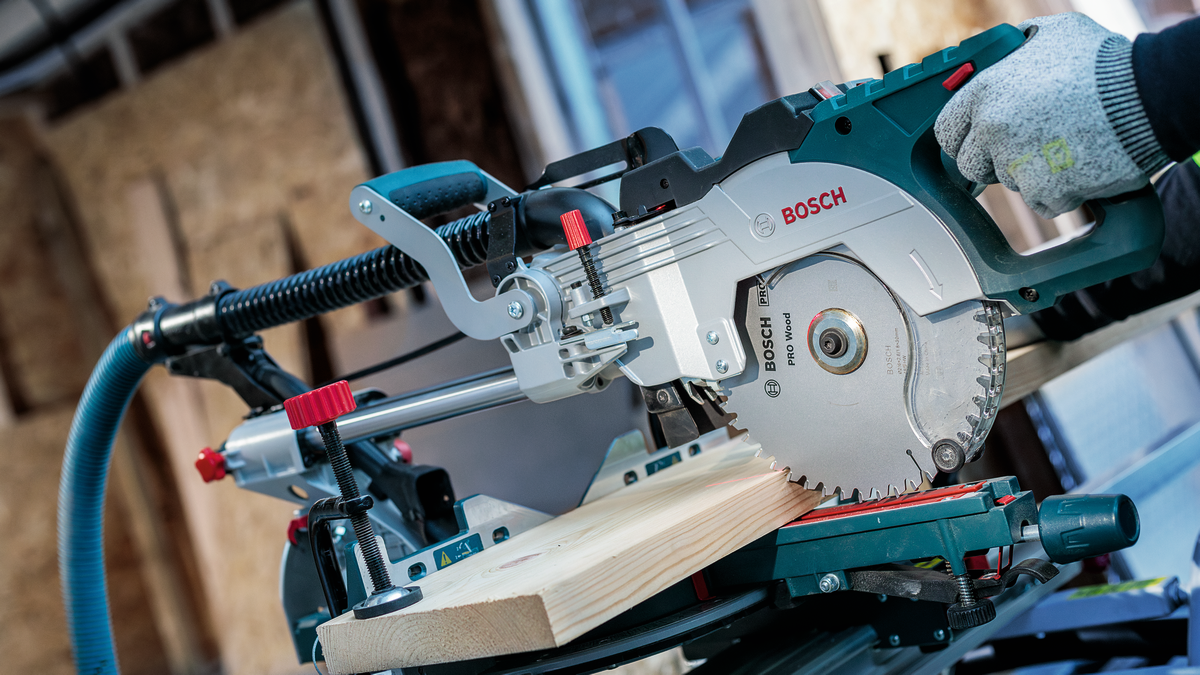

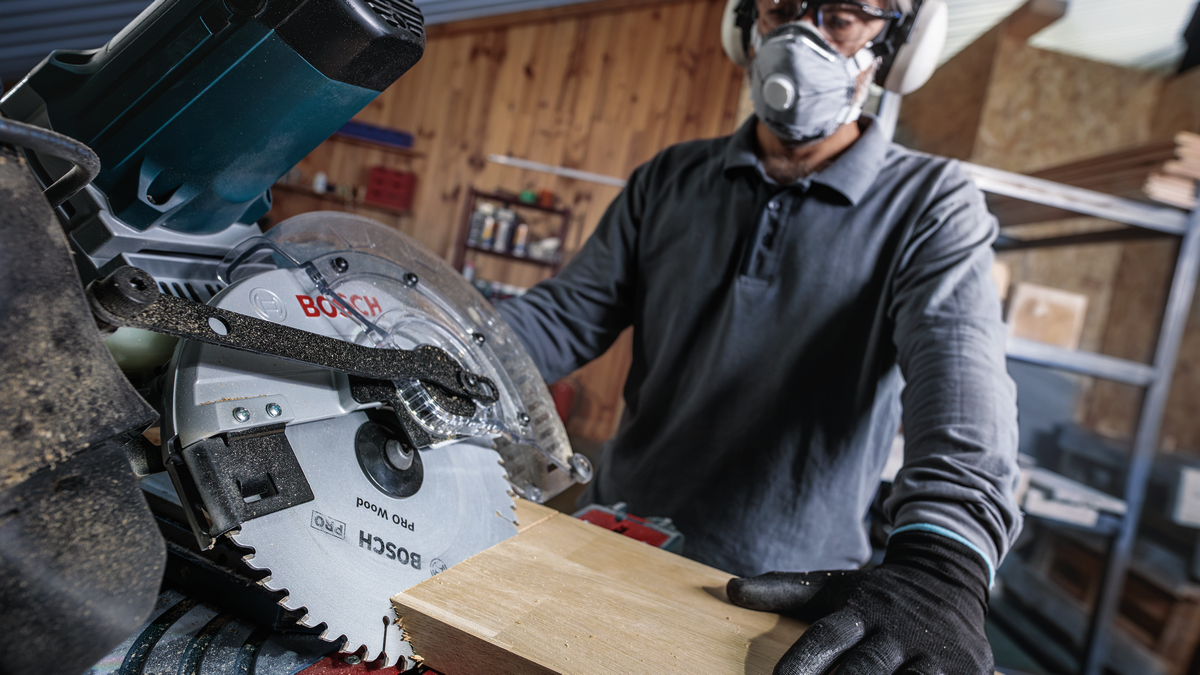

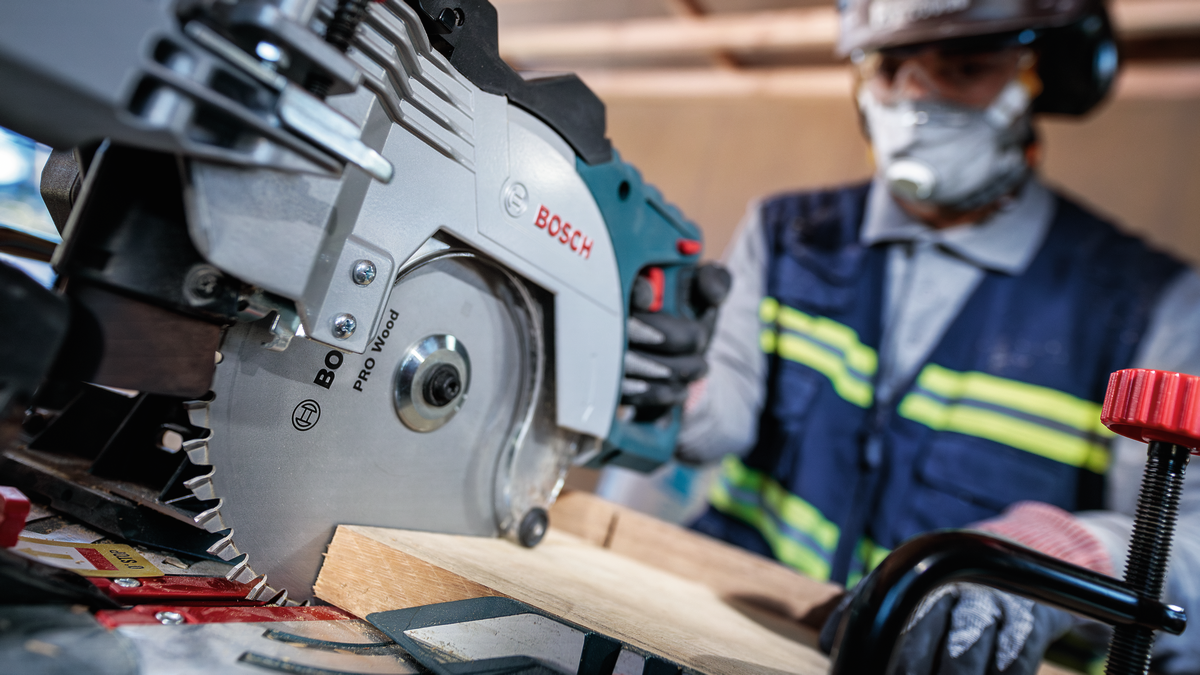

For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 4 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

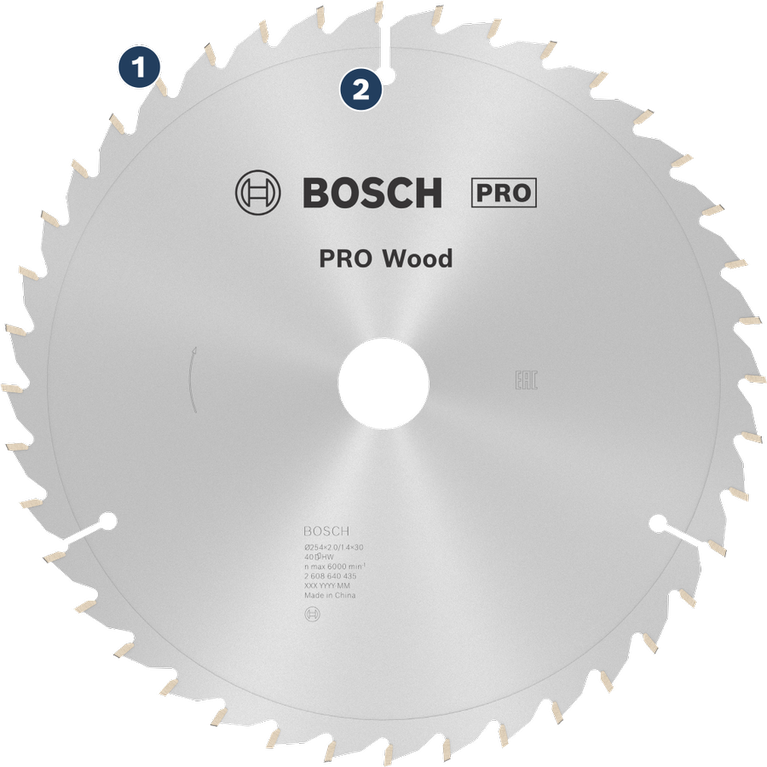

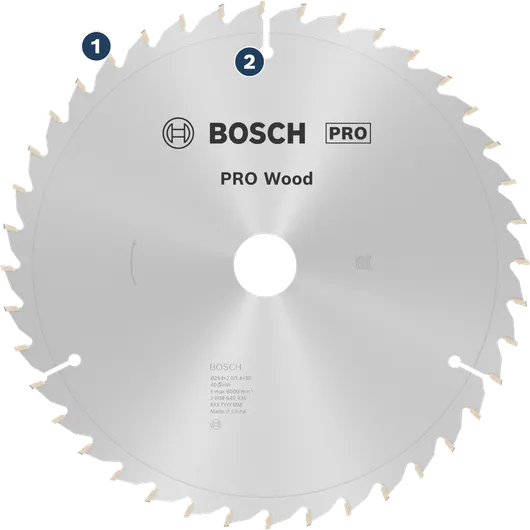

Ground and sharpened fine carbide teeth for strength, durability, and precision

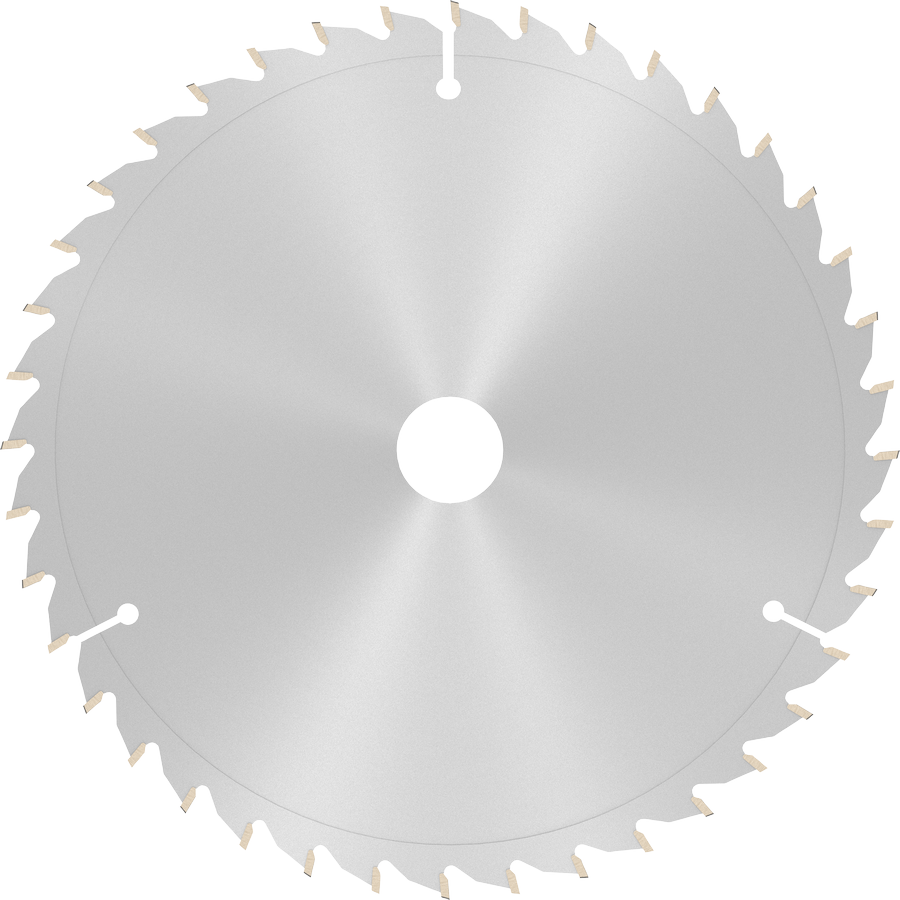

Expansion slots reduce heat for a longer lifetime

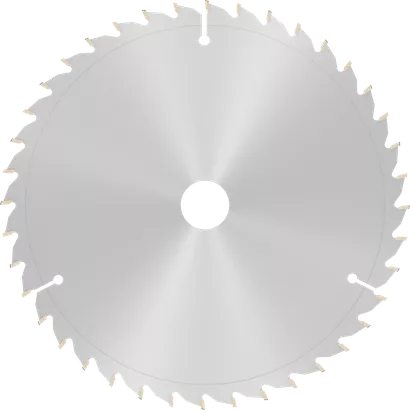

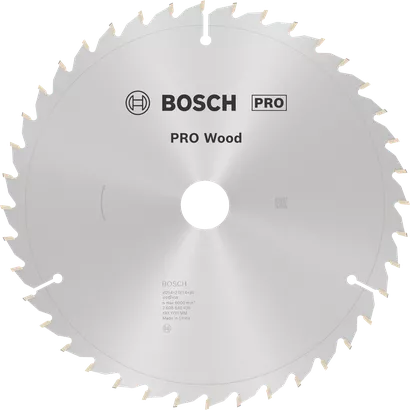

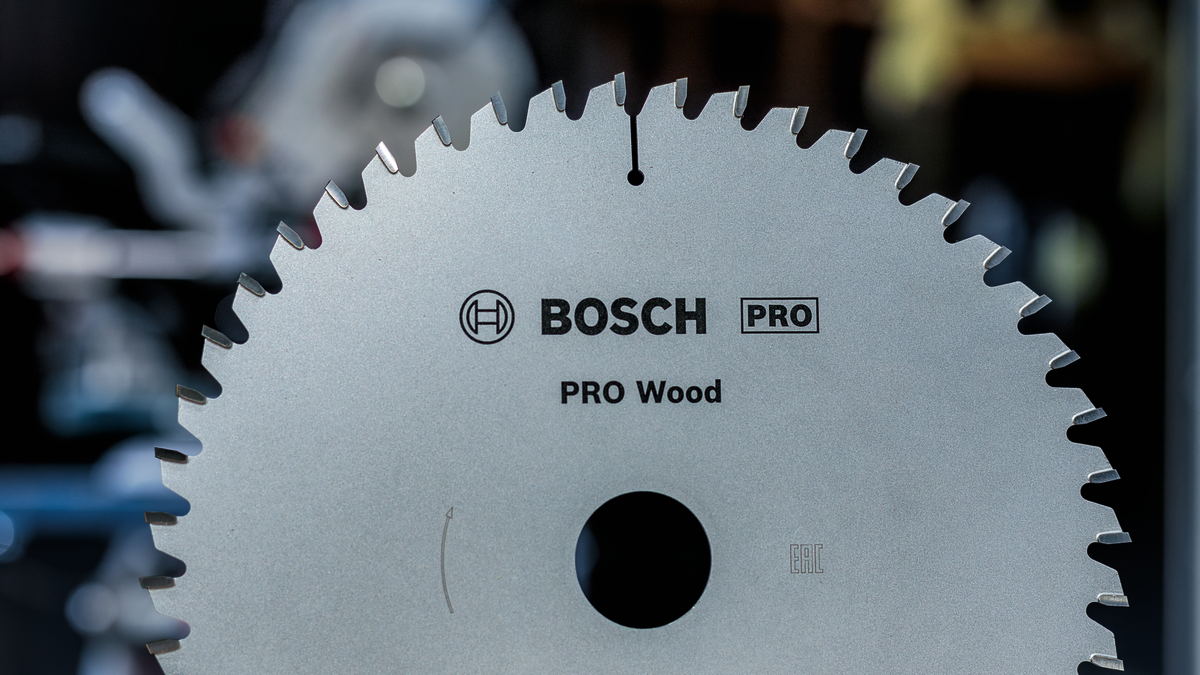

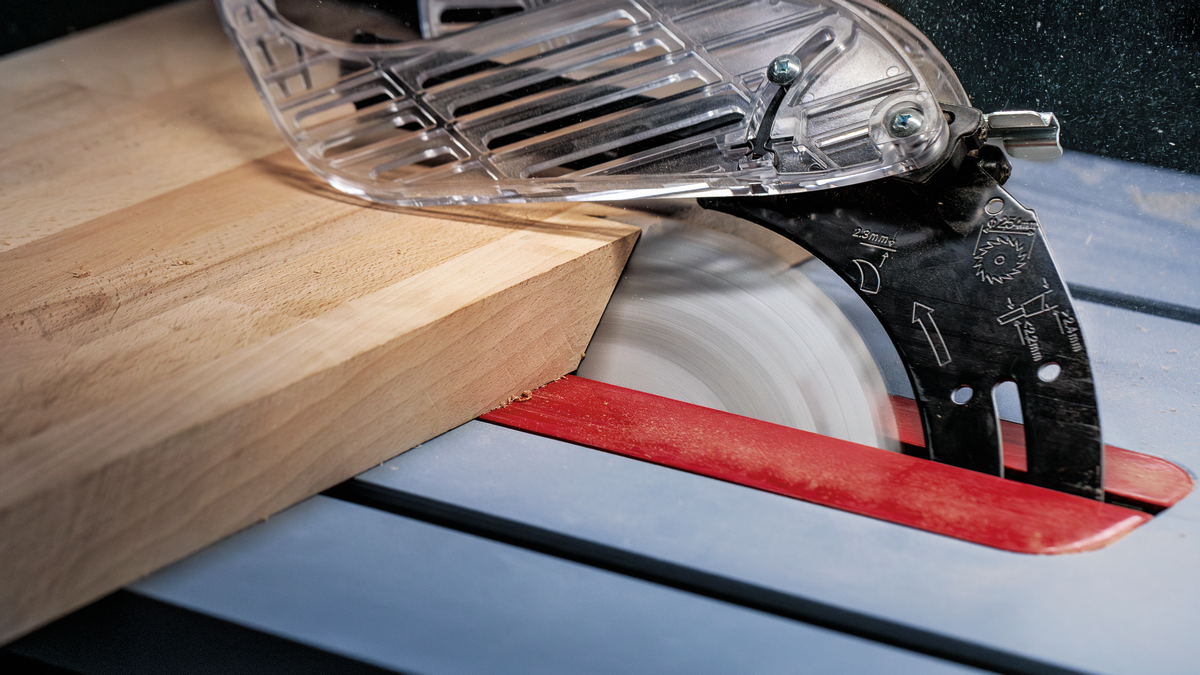

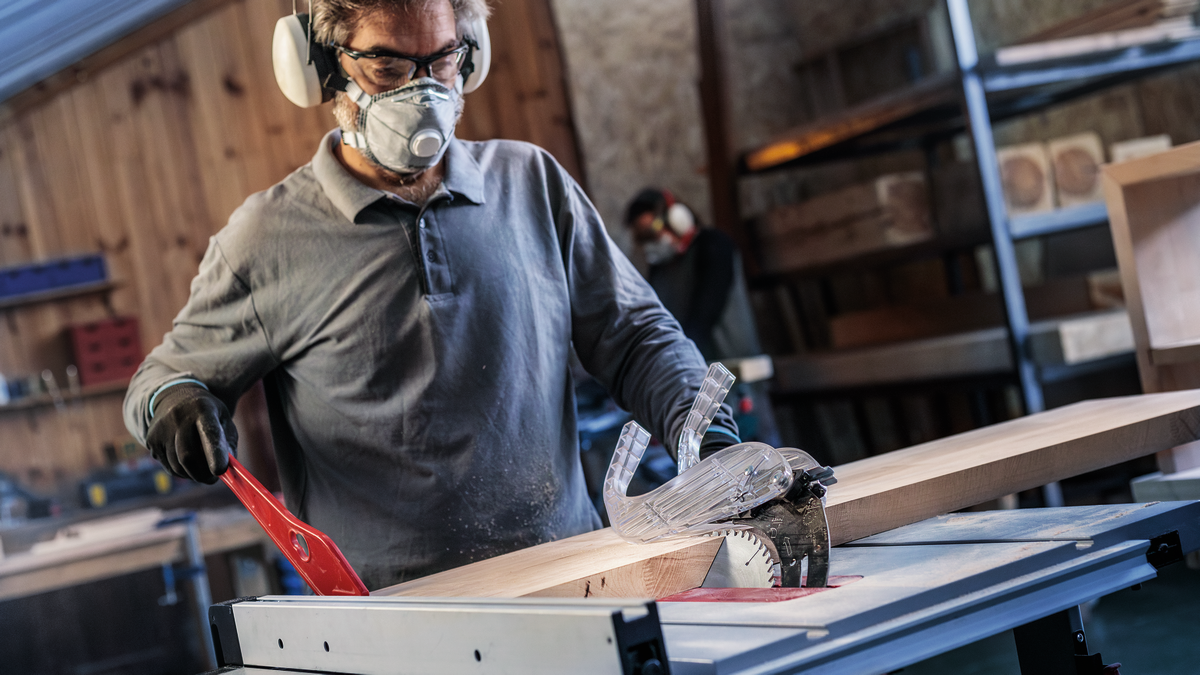

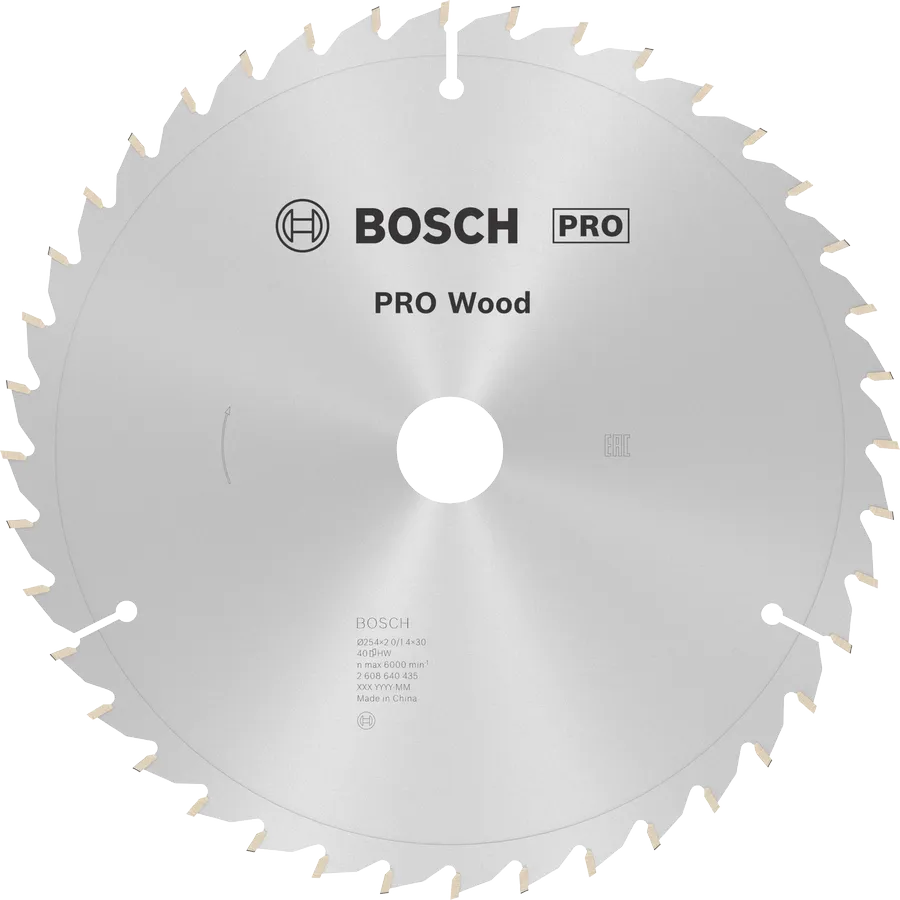

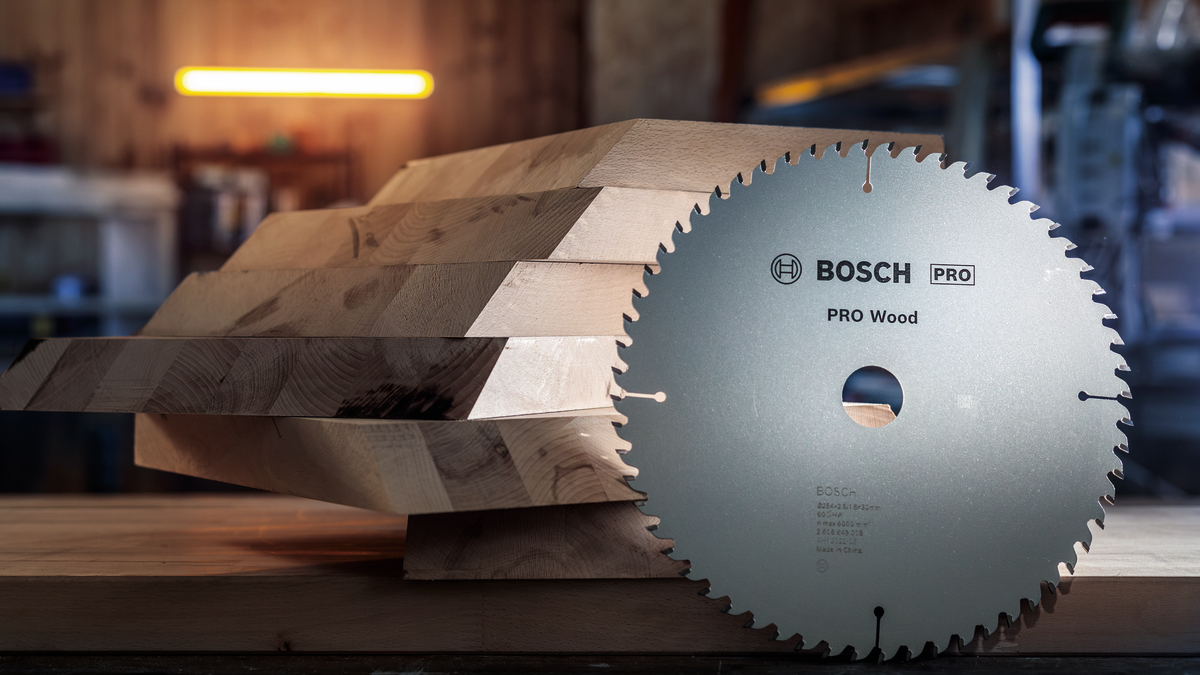

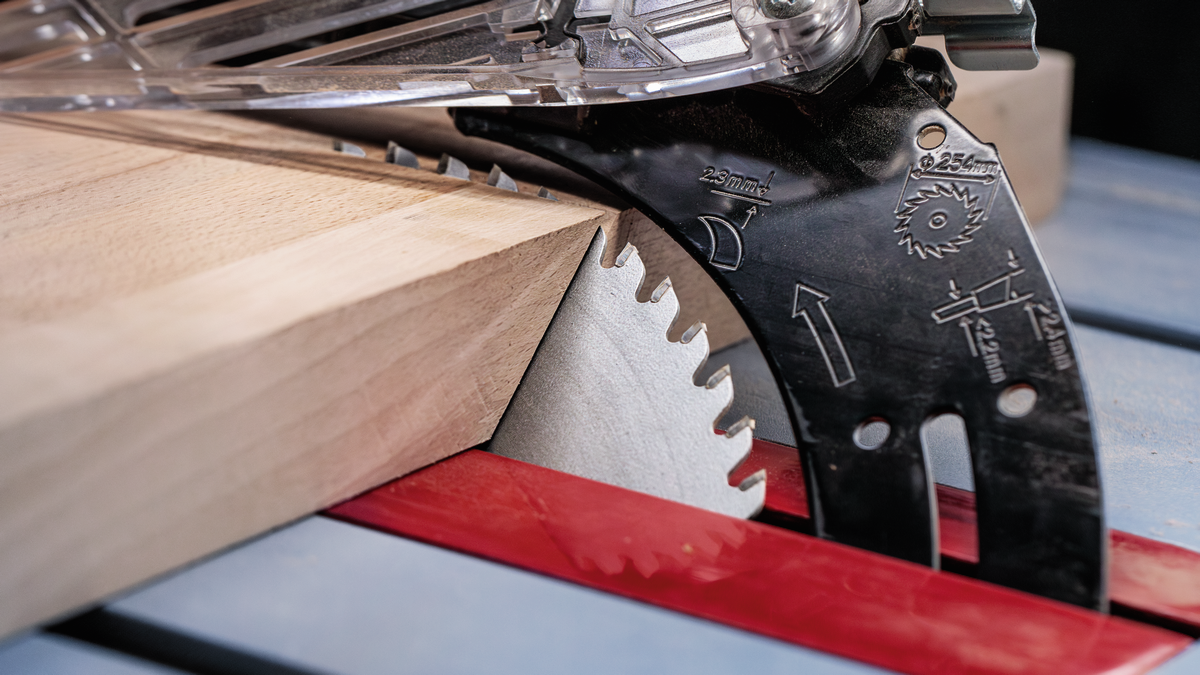

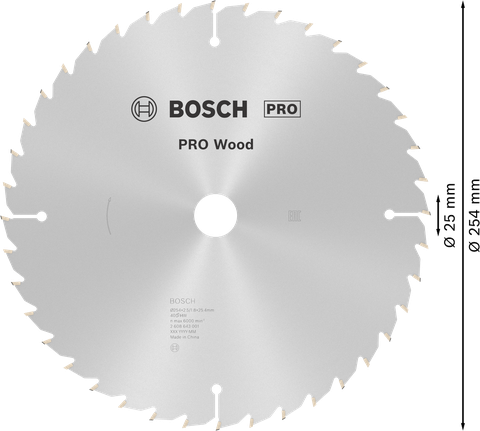

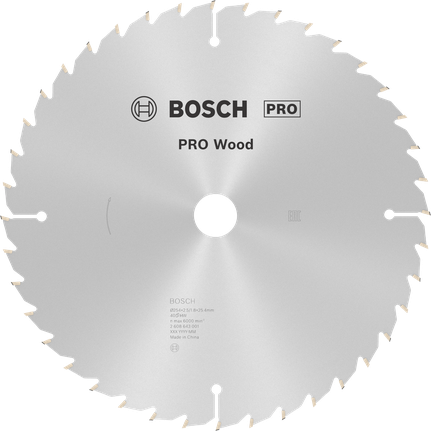

The PRO Wood Circular Saw Blade to helps you cut all types of solid wood and wood-based panel materials. We made it strong and well balanced to ensure you get clean and accurate cuts – time and again.
Available product options: 7
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 643 009 | 10 | 254 | 30 | 25 | 1 Pcs | Find a local dealer | ||
| 2 608 643 010 | 10 | 254 | 30 | 25 | 1 Pcs | Find a local dealer | ||
| 2 608 643 024 | 12 | 305 | 30 | 25 / 20 | 1 Pcs | Find a local dealer | ||
| 2 608 643 026 | 12 | 305 | 30 | 25 / 20 | 1 Pcs | Find a local dealer | ||
| 2 608 643 027 | 12 | 305 | 30 | 25 / 20 | 1 Pcs | Find a local dealer | ||
| 2 608 643 033 | 14 | 356 | 30 | 25 / 20 | 1 Pcs | Find a local dealer | ||
| 2 608 643 035 | 14 | 356 | 30 | 25 / 20 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608643009 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 10 |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643010 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 10 |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 100 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643024 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643026 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643027 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 100 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643033 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 14 |
| Outer diameter mm | 356 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608643035 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 14 |
| Outer diameter mm | 356 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 / 20 |
| Bore with reduction ring inch | 1 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 100 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
