GCM 18V-216 D Professional
Cordless Mitre Saw BITURBO
New standard in ergonomics: mobile cordless miter saw with 70 x 305 mm cutting capacity
- Corded cutting performance thanks to the BITURBO Brushless drive train
- Easy control of long materials during cutting

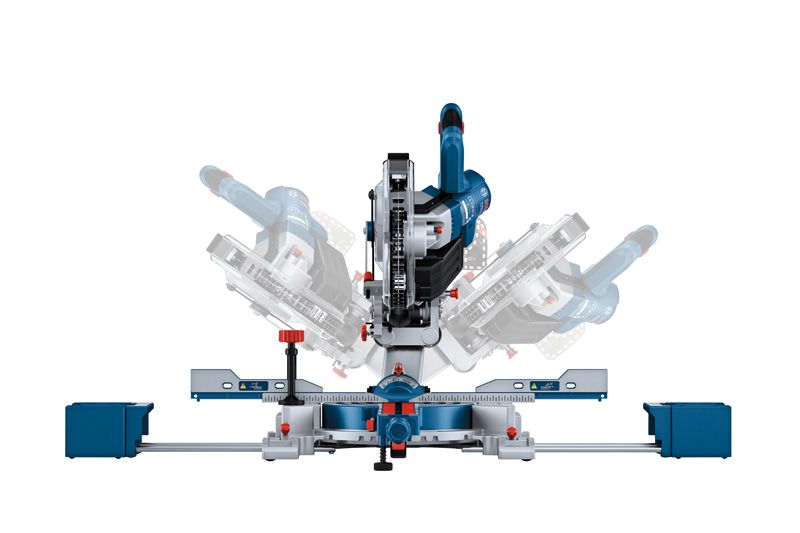

- Higher convenience and flexibility at challenging cuts due to dual bevel function
Functions & key features
GCM 18V-216 D Professional
Your Selection
Order number: 0 601 B51 080

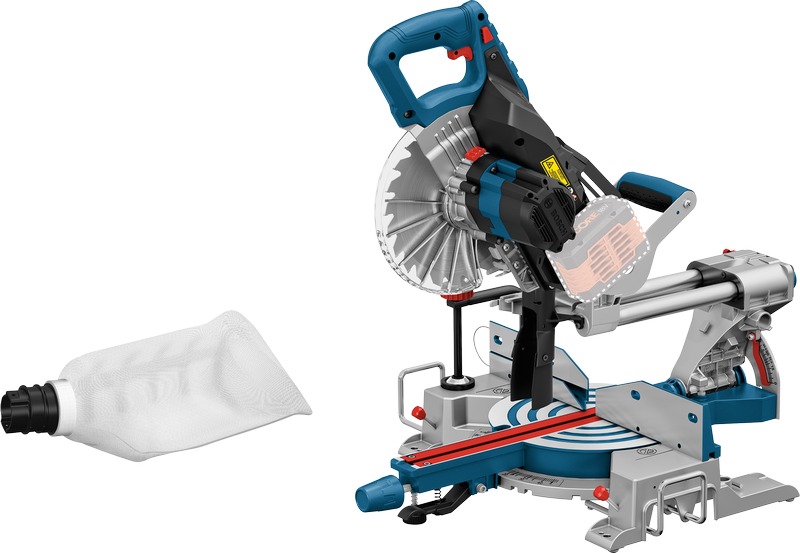

Included in this variant
-
1 x circular saw blade, Expert for Wood, 216 x 25.4 x 2.5 mm, 60Order number: 2 608 642 995
-
2 x Workpiece support (flexibly pluggable)Order number: 1 609 B07 675
-
Dust bagOrder number: 2 608 000 841
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 216 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Battery voltage | 18.0 V |
| Weight | 16.2 kg |
| Cutting capacity, 0° | 70 x 305 mm |
| Cutting capacity, 45° mitre | 70 x 215 mm |
| Cutting capacity, 45° bevel | 42 x 305 mm |

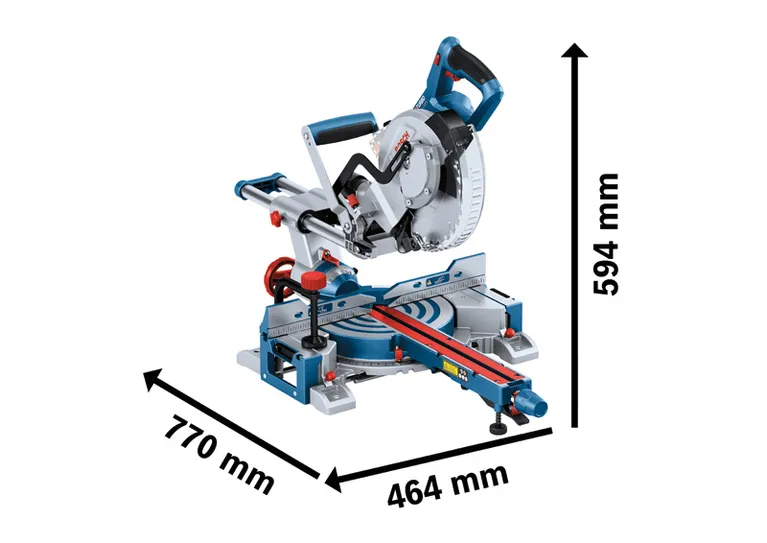

| Tool dimensions (width x length x height) | 464 x 770 x 594 mm |
| No-load speed | 5,000 rpm |
| Saw blade bore diameter | 25.4 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 18V-216 D Professional: Further information
Product Highlights

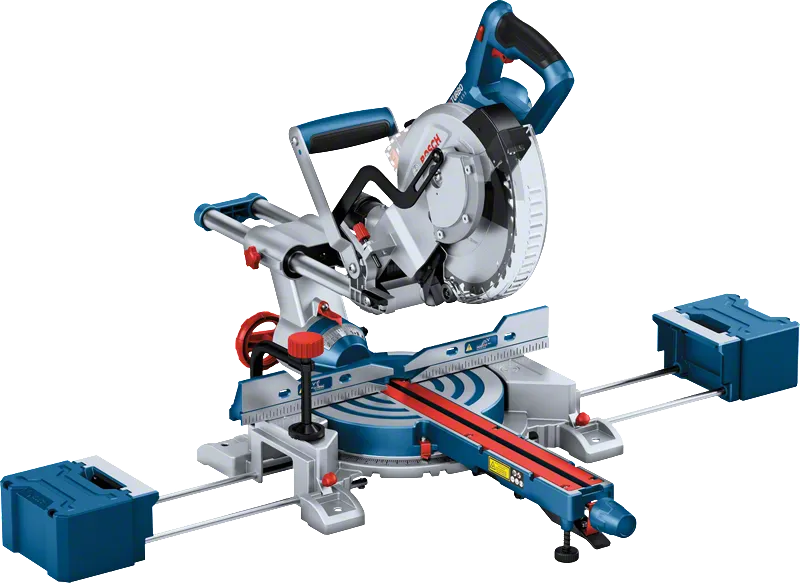

The cordless GCM 18V-216 D Professional offers maximum cutting performance thanks to its BITURBO Brushless drive train combined with a ProCORE18V battery. The mobile miter saw can easily control long materials during cutting due to its detachable workpiece supports and long table extensions. Its dual bevel setting with ergonomic bevel lock wheel allows more comfort and flexibility for demanding cuts.
Equipment & Application
The GCM 18V-216 D Professional is versatile for cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic. It is compatible with all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. For sufficient runtime, 8 Ah or 12 Ah are recommended. It is also compatible with all Bosch dust extractors, GTA saw stands, and saw blades for cordless miter saws.
