Line lasers
![GLL 3-15 X]( "GLL 3-15 X")
![GLL 3-15 X]( "GLL 3-15 X")
![GLL 3-15 X]( "GLL 3-15 X")

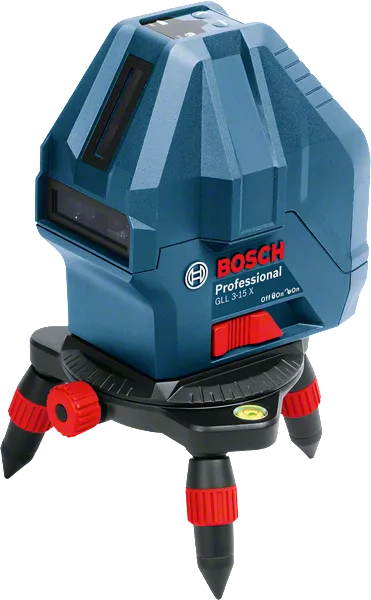

GLL 3-15 X Professional
Line Laser

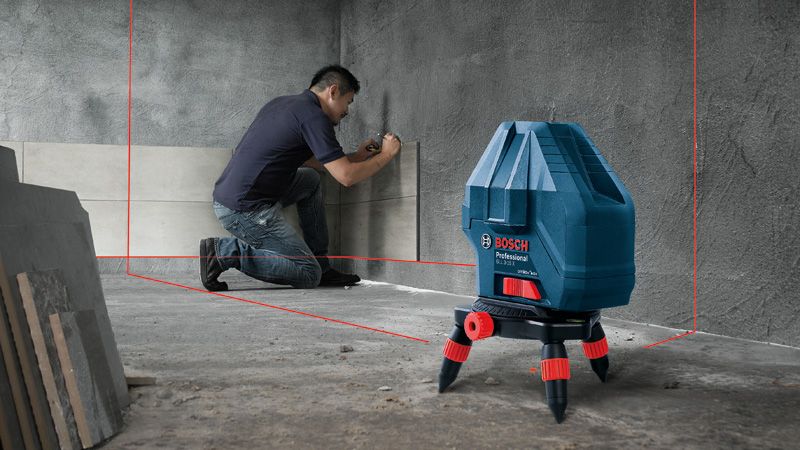

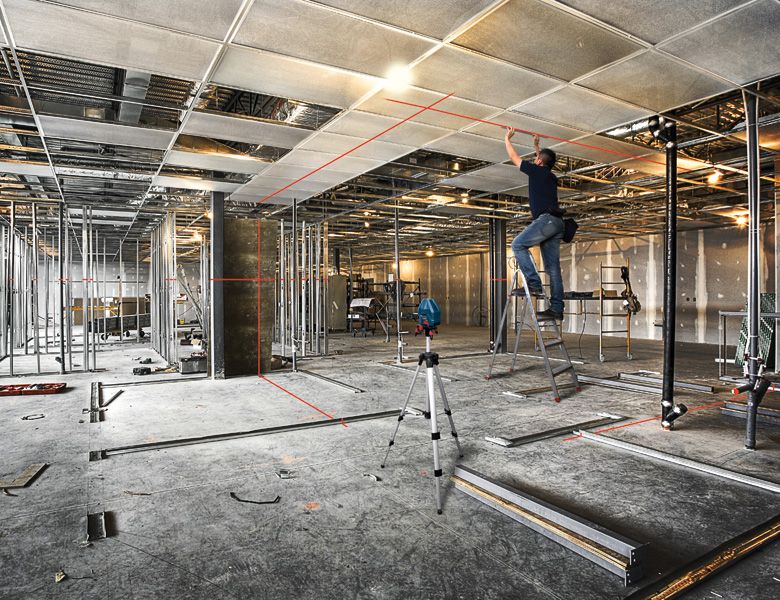

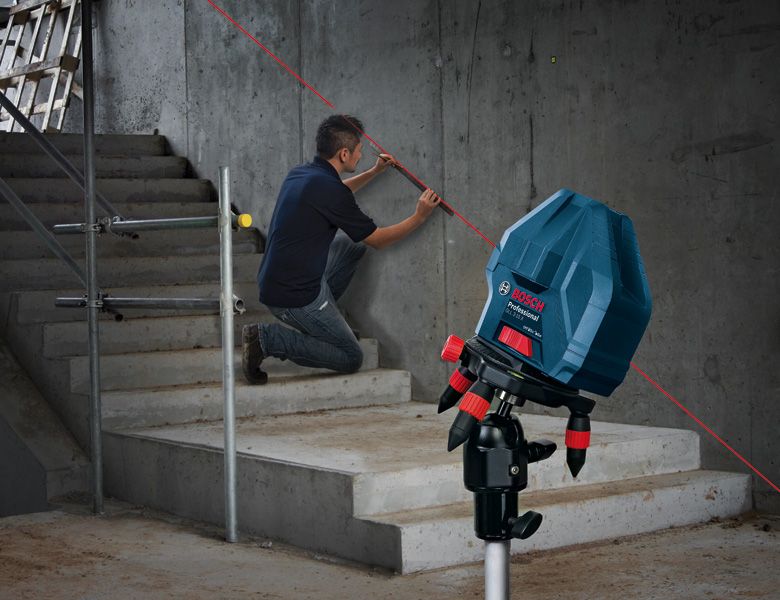

For easy decorative interior fitting applications
- Maximum precision thanks to the Bosch Pendulum Precision System
- Projection of a vertical and a horizontal line
- Detachable, 360° rotating platform with bubble vial and fine adjustment
in carrying bag with 4 x battery (AA)
0 601 063 M80
GLL 3-15 X Professional
Your Selection
in carrying bag with 4 x battery (AA)
Order number: 0 601 063 M80
Included in this variant
-
1 x shoulder strapOrder number: 2 608 000 706
-
4 x 1.5 V LR6 battery (AA)
-
Carrying bag
Technical data
Additional data |
|
|---|---|
| Tripod thread | 5/8" |
| Colour of laser line | red |
| Projection | 3 lines + 1 plumb point |
| Working range | 15 m |
| Accuracy | Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation) |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max. | 5 m (bottom) |
| Self-levelling range | ± 3° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 24 h |
| Weight, approx. | 0.72 kg |
| Color of plumb points | red |
| Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Working range, value | 15 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
