Line lasers

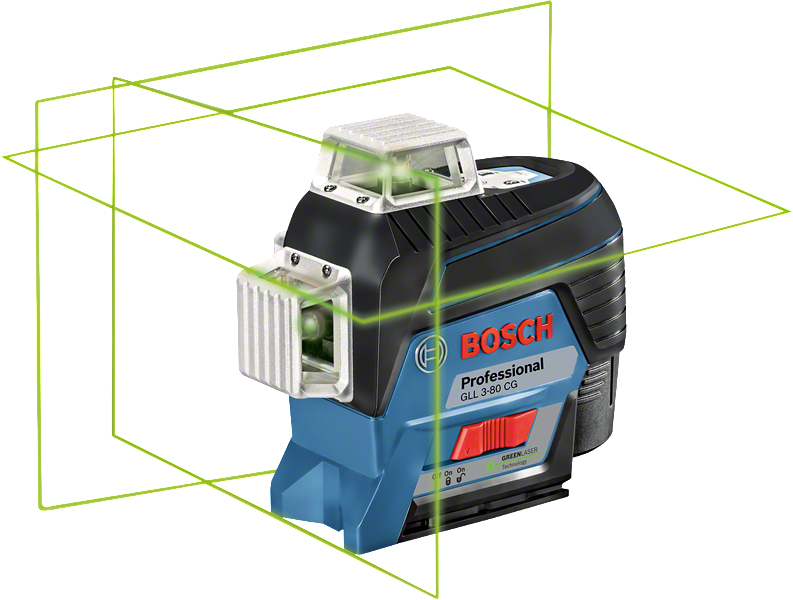

GLL 3-80 CG Professional

Name: GLL 3-80 CG
Brand: Bosch power tools
Availability: InStock

Line Laser

Green supreme visibility in 3 x 360°. Simply connected.

Up to four times better visibility due to the green laser lines
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool

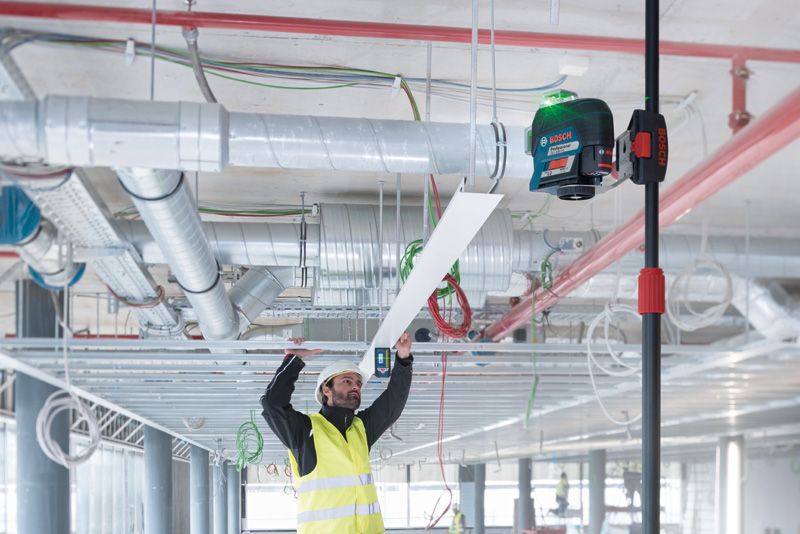

High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool

Functions & key features

Your Selection

in carrying case with 4 x battery (AA), accessory set

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with 4 x battery (AA), accessory set 0 601 063 U80

Find a local dealer

GLL 3-80 CG Professional

Your Selection

in carrying case with 4 x battery (AA), accessory set

Order number: 0 601 063 U80

Find a local dealer

Included in this variant

AA1 alkaline battery adapter

Order number: 1 608 M00 C1B
Clamp

Order number: 1 609 B00 839
4 x 1.5 V LR6 battery (AA)
Pouch
Universal Holder BM 1 Professional

Order number: 0 601 015 A00
Laser target plate
Carrying case

Your selection

Technical data

Additional data
Colour of laser line	green
Laser diode	500 – 540 nm, < 10 mW
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range	30 m
Working range with receiver	120 m
Working range without receiver	30 m
Accuracy	± 0.2 mm/mᵃ/**
Self-levelling range	± 4°
Levelling time	4 s
Dust and splash protection	IP 54
Power supply	12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.)	6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread	1/4", 5/8"
Weight, approx.	0.9 kg
Projection	3 x 360° line
Compatible laser receivers	LR 7
Working range, value	30 m
Working range with receiver, value	120 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵃ Applies for the four horizontal intersection points
