Line lasers

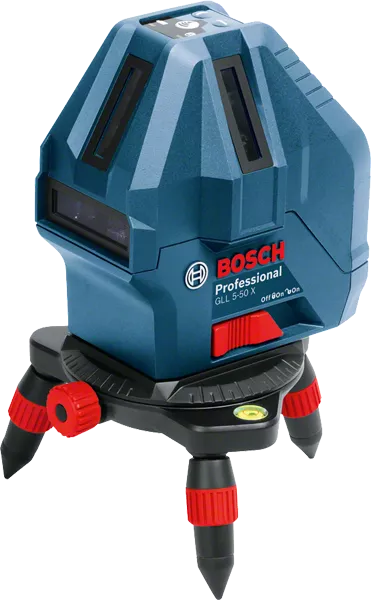

GLL 5-50 X Professional

Line Laser

Better line visibility for increased work efficiency in everyday interior levelling jobs

Greater Visibility - On front cross for better working performance
Compact - Light and easy-to-carry
Robust - Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhances tool protection and levelling accuracy

Your Selection

in carrying bag with 4 x battery (AA)

Change variant

Check availability on location

Buy now

Your Selected Variant

in carrying bag with 4 x battery (AA) 0 601 063 N80

Buy now

Select a variant

Your Selection

in carrying bag with 4 x battery (AA)

Order number: 0 601 063 N80

Buy now

Included in all variants

1 x shoulder strap

Order number: 2 608 000 706
4 x 1.5 V LR6 battery (AA)
Carrying bag

Your selection

Your Selection

in carrying bag with 4 x battery (AA), Building tripod BT150-5/8 Professional (3 601 K96 C80)

Order number: 0 601 063 N81

Find a local dealer

Included in all variants

1 x shoulder strap

Order number: 2 608 000 706
4 x 1.5 V LR6 battery (AA)
Carrying bag

Additional in this variant

Building tripod BT150-5/8 Professional

Order number: 3 601 K96 C80

Select Variant

Technical data

Additional data
Tripod thread	5/8"
Colour of laser line	red
Working range	15 m
Working range with receiver	50 m
Accuracy	Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	5 m (bottom)
Self-levelling range	± 3°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	24 h
Weight, approx.	0.5 kg
Color of plumb points	red
Plumb point accuracy	± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value	15 m
Working range with receiver, value	50 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
