Line lasers

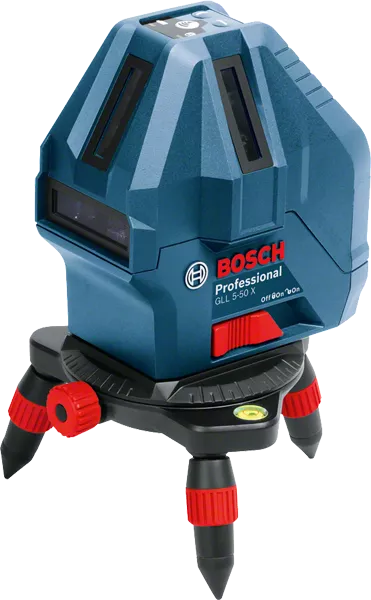

GLL 5-50 X Professional

Line Laser

Better line visibility for increased work efficiency in everyday interior levelling jobs

Greater Visibility - On front cross for better working performance
Compact - Light and easy-to-carry
Robust - Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhances tool protection and levelling accuracy

Your Selection

in carrying bag with 4 x battery (AA), Building tripod BT150-5/8 Professional (3 601 K96 C80)

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying bag with 4 x battery (AA), Building tripod BT150-5/8 Professional (3 601 K96 C80) 0 601 063 N81

Find a local dealer

Select a variant

Your Selection

in carrying bag with 4 x battery (AA), Building tripod BT150-5/8 Professional (3 601 K96 C80)

Order number: 0 601 063 N81

Find a local dealer

Included in all variants

1 x shoulder strap

Order number: 2 608 000 706
4 x 1.5 V LR6 battery (AA)
Carrying bag

Additional in this variant

Building tripod BT150-5/8 Professional

Order number: 3 601 K96 C80

Your selection

Your Selection

in carrying bag with 4 x battery (AA)

Order number: 0 601 063 N80

Buy now

Included in all variants

1 x shoulder strap

Order number: 2 608 000 706
4 x 1.5 V LR6 battery (AA)
Carrying bag

Select Variant

Technical data

Additional data
Tripod thread	5/8"
Colour of laser line	red
Working range	15 m
Working range with receiver	50 m
Accuracy	Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Laser diode	630 – 650 nm, < 1mW
Operating temperature	-10 – 45 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	5 m (bottom)
Self-levelling range	± 3°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	24 h
Weight, approx.	0.5 kg
Color of plumb points	red
Plumb point accuracy	± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value	15 m
Working range with receiver, value	50 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
